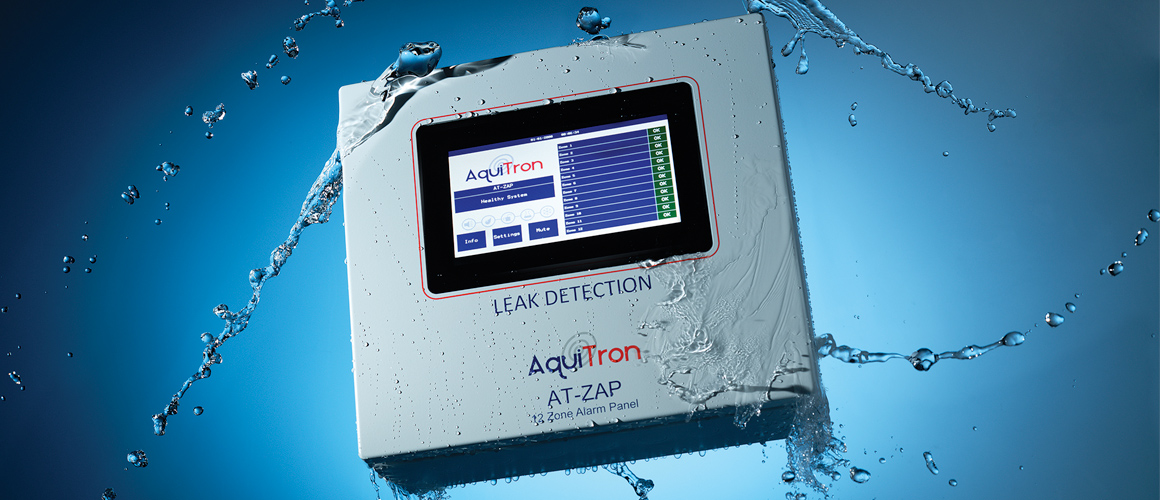

A multi-zone alarm control panel for water, oil, chemical and refrigerant gas leak detection

This is the latest addition to the AquiTron range of leak detection panels

The AT-ZAP is a multi-zone addressable panel with 12 individual sensing zones that can monitor different sensors in order to detect leaks including water, oils, chemicals as well as monitor for refrigerant gas (or a combination of any of these). A total of 1,200 metres or 120 sensing probes can be simultaneously monitored.

5-year warranty

The Aquilar products now come with a 5-year warranty for total peace of mind.

AT-ZAP
	A multi-zone alarm control panel for water, oil, chemical and refrigerant gas leak detection The AquiTron Zone Alarm Panel is designed with multi zone flexibility in mind It offers an extensive level of user defined functionality, on a zone-by-zone basis for all 12 zones Touch screen graphical user interface, giving access to a range of live, real-time and historic sensor, monitoring and alarm event data Instant audible and visual (alarms shown on screen display) notification when a leak, spill or flood is detected Can be integrated with BMS systems, connected to external alarms or beacon sounders (including remote muting) Works with all the AquiTron & TraceTek sensing cables and probes, for Water, Fuels, Oils, Chemicals and Refrigerant gas sensors. both commercial and residential building applications to provide protection against leaks Water shut-off solenoid valves can simply be connected and assigned to specific rooms or zones to isolate a leak quickly and minimise disruption. (can directly control Aquilar valves, no mains switching or extra PSU’s required) Battery Backup can be simply added to the panel to provide instant battery power in case of power disruption In the event of multiple or simultaneous leaks, all zones operate individually and can report all events accurately All 12 zones can be individually enabled/disabled to suit the number of rooms/areas for the application Integrated 12/24Vdc power is provided for sounder beacons, remote alarm units, refrigerant gas sensors and optical oil/water sensors	Click for Datasheet Click for Installation & Operation Instructions Click for Product Brochure Click for Commissioning Form (Interactive) Click for Commissioning Form (Printable)

AT-ZAP

A multi-zone alarm control panel for water, oil, chemical and refrigerant gas leak detection

The AquiTron Zone Alarm Panel is designed with multi zone flexibility in mind
It offers an extensive level of user defined functionality, on a zone-by-zone basis for all 12 zones
Touch screen graphical user interface, giving access to a range of live, real-time and historic sensor, monitoring and alarm event data
Instant audible and visual (alarms shown on screen display) notification when a leak, spill or flood is detected
Can be integrated with BMS systems, connected to external alarms or beacon sounders (including remote muting)
Works with all the AquiTron & TraceTek sensing cables and probes, for Water, Fuels, Oils, Chemicals and Refrigerant gas sensors. both commercial and residential building applications to provide protection against leaks
Water shut-off solenoid valves can simply be connected and assigned to specific rooms or zones to isolate a leak quickly and minimise disruption. (can directly control Aquilar valves, no mains switching or extra PSU’s required)
Battery Backup can be simply added to the panel to provide instant battery power in case of power disruption
In the event of multiple or simultaneous leaks, all zones operate individually and can report all events accurately
All 12 zones can be individually enabled/disabled to suit the number of rooms/areas for the application
Integrated 12/24Vdc power is provided for sounder beacons, remote alarm units, refrigerant gas sensors and optical oil/water sensors

Click for Datasheet
Click for Installation & Operation Instructions
Click for Product Brochure
Click for Commissioning Form (Interactive)
Click for Commissioning Form (Printable)

TECHNICAL INFORMATION
Number of sensing zones	12 (can be individually enabled/disabled to suit number of rooms/areas)
Sensing cable compatibility	All TraceTek sensing cable ;TT1000, TT1100, 3000, 5000, 5001, 7000
Detection Probes	Water detection probes (AT-PROBE-TS/M), optical sensors AT-OPSEN/RS) and immersion sensors (AT-350A, AT-600A). Drip tray and Tundish probes AT-DTP, AT-TDP Refrigerant gas probe AT-SRG
Maximum sensing circuit	100 metres (328 ft) of TraceTek sensing cable or 10 AquiTron Probes
Enclosure	Powder coated steel, colour RAL 9016 Matt White, IP54, lockable
Humidity	5% to 95% non-condensing
Power supply	80 – 275Vac @ 50/60 Hz 12Vdc ±20%
Battery backup	Optional separate unit, providing up to 24 hour, AT-PSU-12-3 + AT-BAT
Accessory Power Output	12/24 Vdc not exceeding 3A
Relay Output	12 x volt free relay, 3A 250Vac / 24Vdc. Type of SPST Configurable in software. Additional 2 Summary Leak Relays and 1 Summary Fault relay.
Solenoid Valve Outputs	12 x 6Vdc Solenoid Valve Outputs (configurable in software). Only for use with AquiTron AT-V-P-XX or AT-V-B-XX 6Vdc Latching Valves.
Touch Screen Display	Colour, 7” 800×480 Resolution
Audible alarm	90dB at 10cm
Operating temperature	0°C to 50°C (32°F to 122°F)
