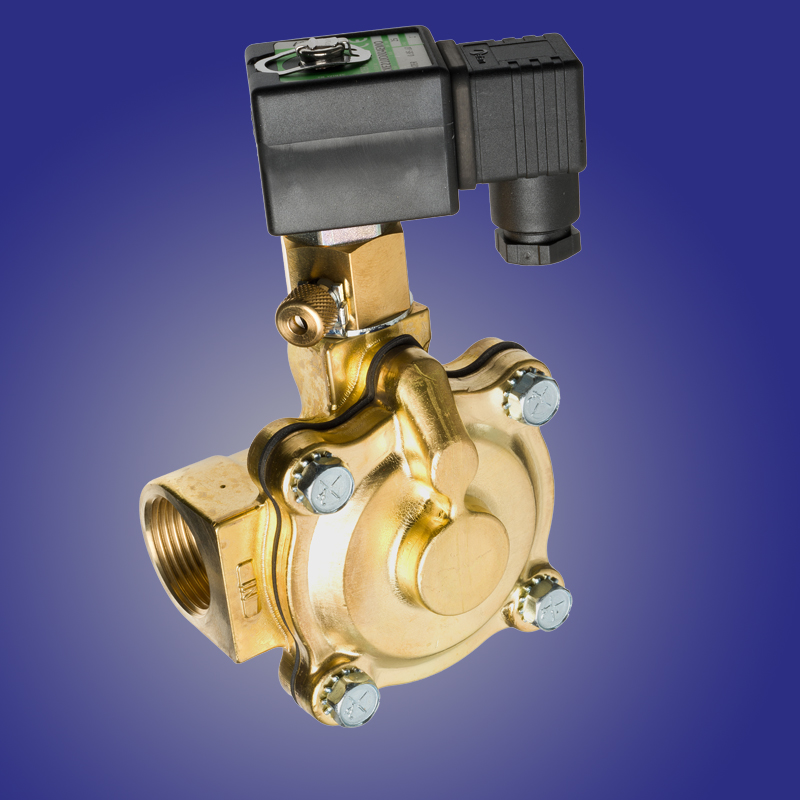

Solenoid Valve water shutoff leak detection

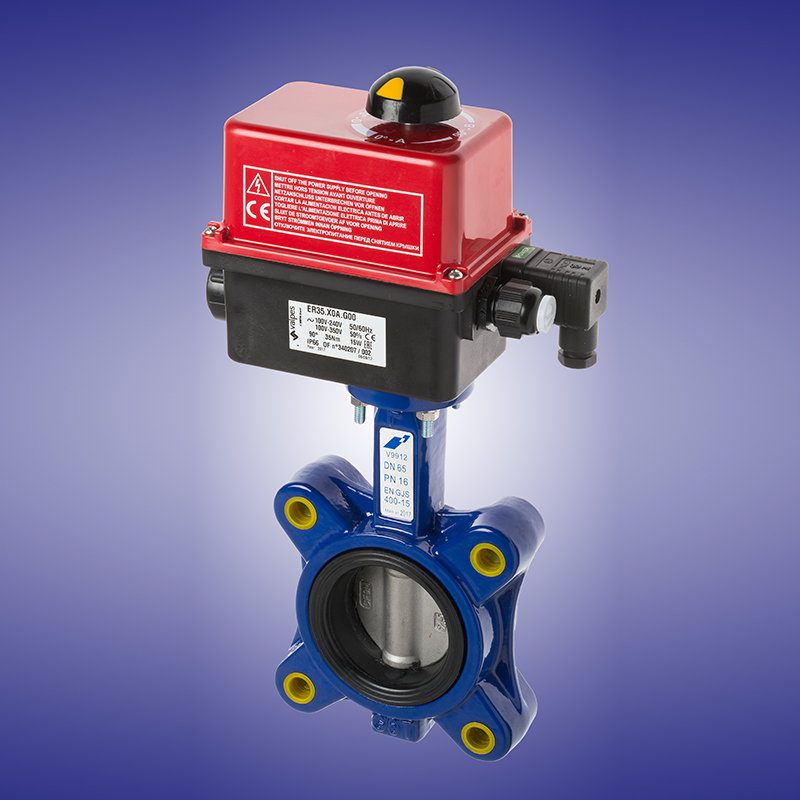

Butterfly Valve water shutoff leak detection

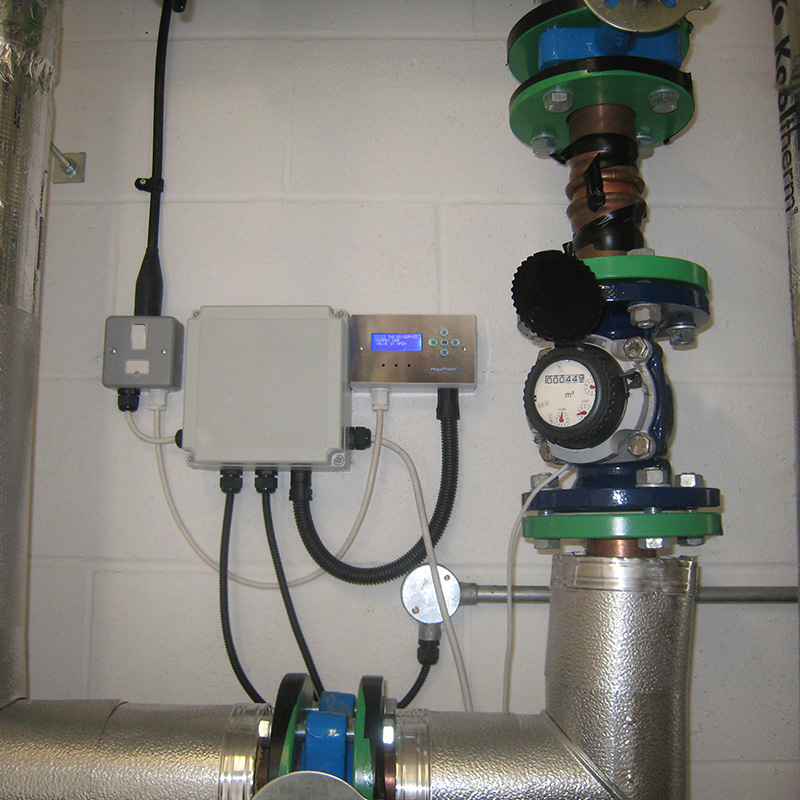

BREEAM Wat03 Major leak detection application 2
 BREEAM Major Water Leak Detection – Automatic Water Shut-off Valve
Wat 03 Water leak detection and Prevention

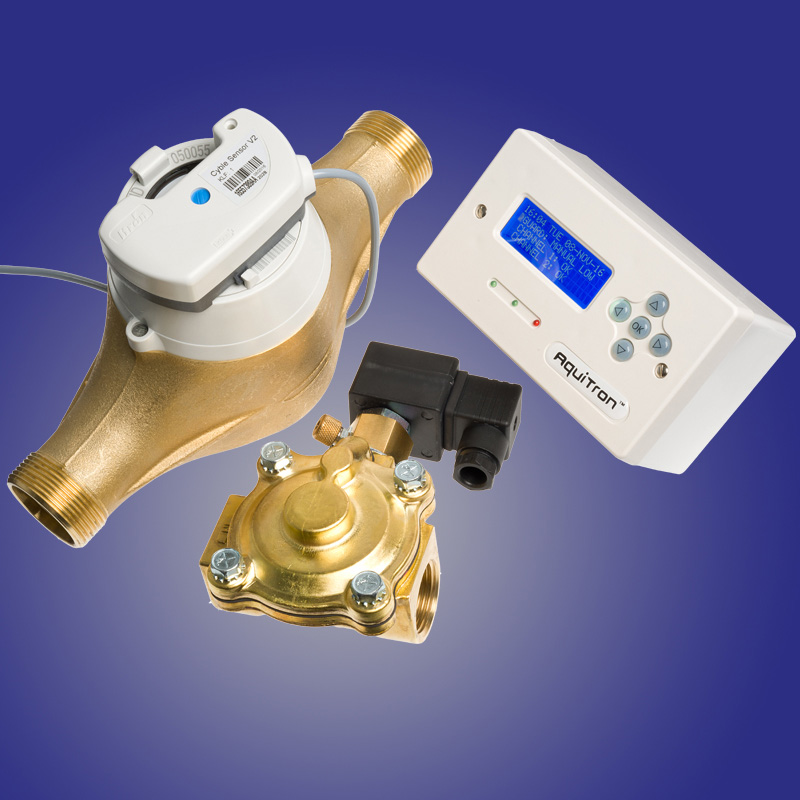

No. Credits available: 1The AquiTron AT-WM is a pulse water meter, leak monitoring system that has been specifically designed to help achieve the requirements of 2018: 1.0 BREEAM UK New construction (non-domestic buildings).

The AT-WM system will allow designers, M&E contractors and developers to achieve the “Credit” available to reduce the impact of water leaks that may otherwise go undetected.

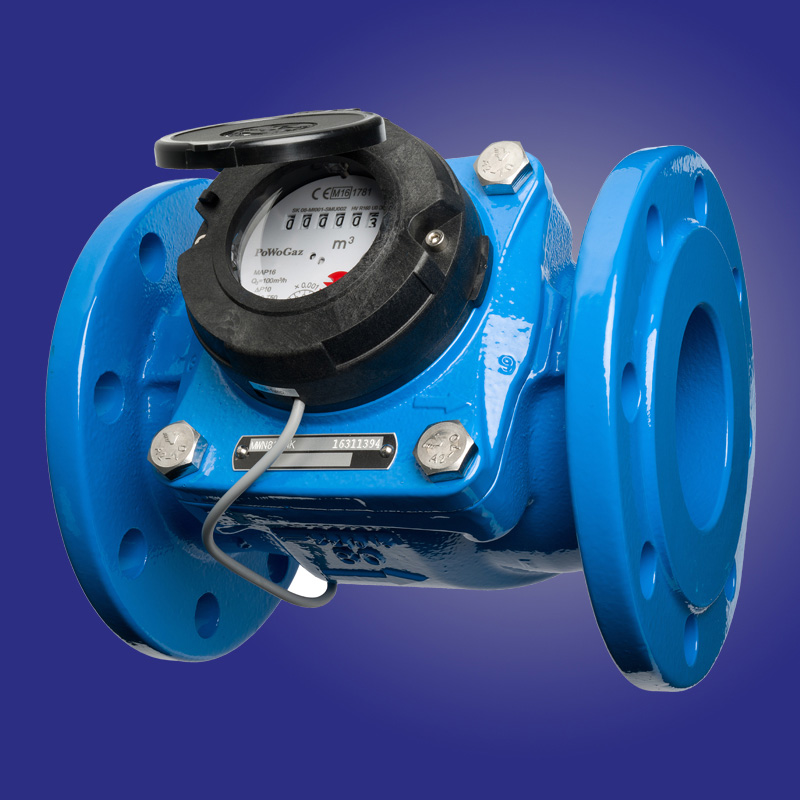

The system is designed to monitor water flowing through a pulse water meter. If the volume of water reaches the pre-set limit (customer adjustable) the system can isolate the mains water pipe, therefore limiting the amount of water and leak damage.

System features:

  • Separate systems for installation at the site boundary or within the building
  • Mains water pipes ranging from 22mm to 200mm
  • Programmable for different flow (leakage) rates
  • Two levels of monitoring (e.g. occupied and unoccupied building)
  • Programmable time periods to determine alarm levels
  • Automatic setting of alarm levels via a door entry or intruder alarm
  • Automatic water shut-off valve
  • Meets BREEAM Wat 03 requirements
 Click here for Datasheet
Pre-Commissioning Checklist
Installation & Operation
Commissioning Record Sheet
Pulse Splitter Installation Instructions

PDF icon
BREEAM 2018 (Wat 03 Water Leak Detection) New Construction Non-Domestic Buildings











AT-WM-C & AT-WM-M & AT-WM-V

BREEAM Compliance notes
Mains supply shut-off
There is no requirement for the leak detection system to shut off the water supply when the alarm is triggered (constant water supply may still be required for certain systems/operations).
1. A leak detection system which is capable of detecting a major water leak on the mains water supply within the building and between the building and the utilities water meter.
Aquilar confirm compliance using the AT-WM system
2. The leak detection system is:
a. Audible when activated.
YES
b. Activated when the flow of water passing through the water meter/data logger is at a flow rate above a pre-set maximum for a pre-set period of time.
YES
c. Able to identify different flow and therefore leakage rates, e.g. continuous, high and/or low level, over set time periods.
YES
d. Programmable to suit the owner/occupiers’ water consumption criteria.
YES
e. Where applicable, designed to avoid false alarms caused by normal operation of large water-consuming plant such as chillers.
YES
